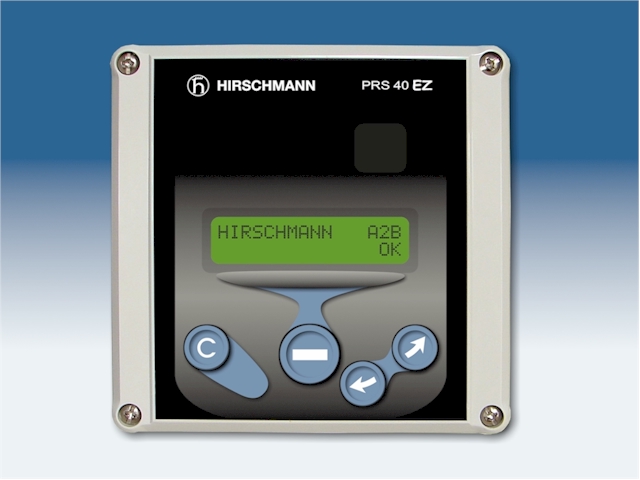

PAT Hirschmann PRS 40 EZ
The PAT Hirschmann PRS40 has been obsoleter for many years.  However there are upgrade options depending on need for simply anti two block, or other additional sensors.  Contact us toll free in the US at 855.BODE.TEC or internationally at +1.303.433.8878

In wireless applications, the PAT Hirschmann PRS 40 EZ utilizes Frequency Hopping Spread Spectrum Technology (FHSS).  This transmits on one of 25 different channels to ensure accurate and consistent reception of data. FHSS also provides additional protection against interference common to construction job sites.





PRS 40 EZ Features

  • Used in wireless and hardwired applications.
  • Monitors combinations of load, boom angle, wind speed, and anti-two block.
  • Operator pre-set limits with audible and visual warning.
  • Operating range up to 1000 feet in wireless applications.
  • Installs quickly and easily on any size mobile crane.

PRS 40 EZ Sensors

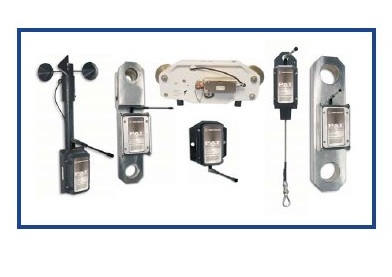

PAT Hirschmann PRS 40 EZ Sensors

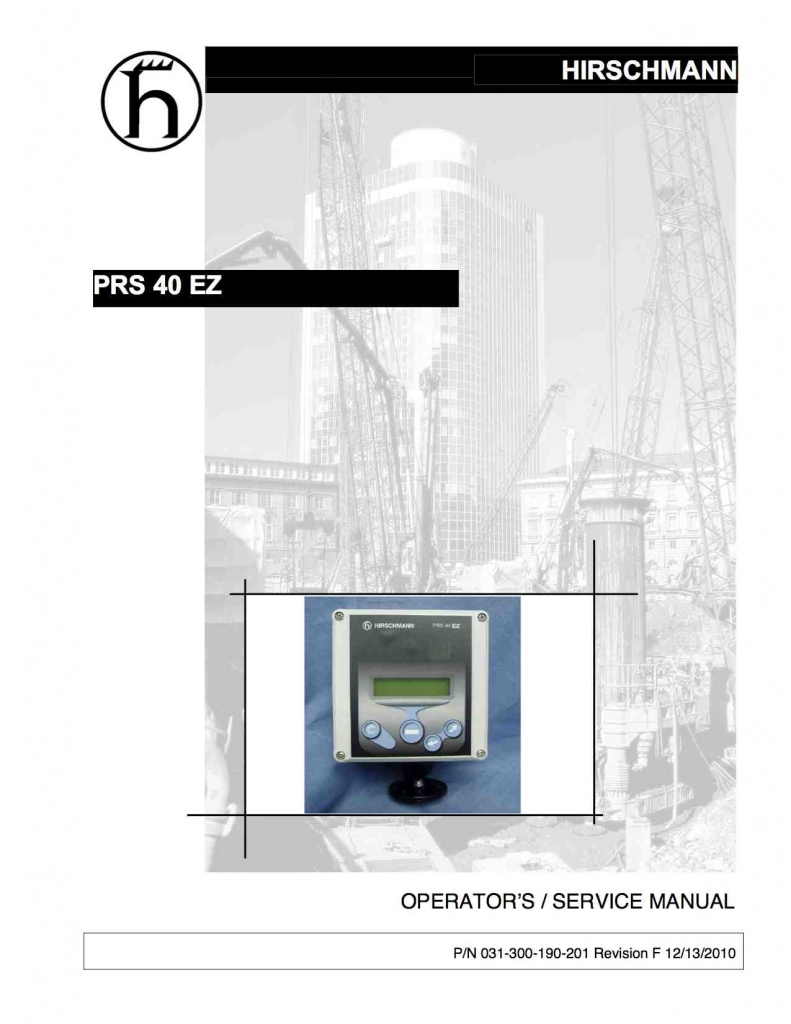

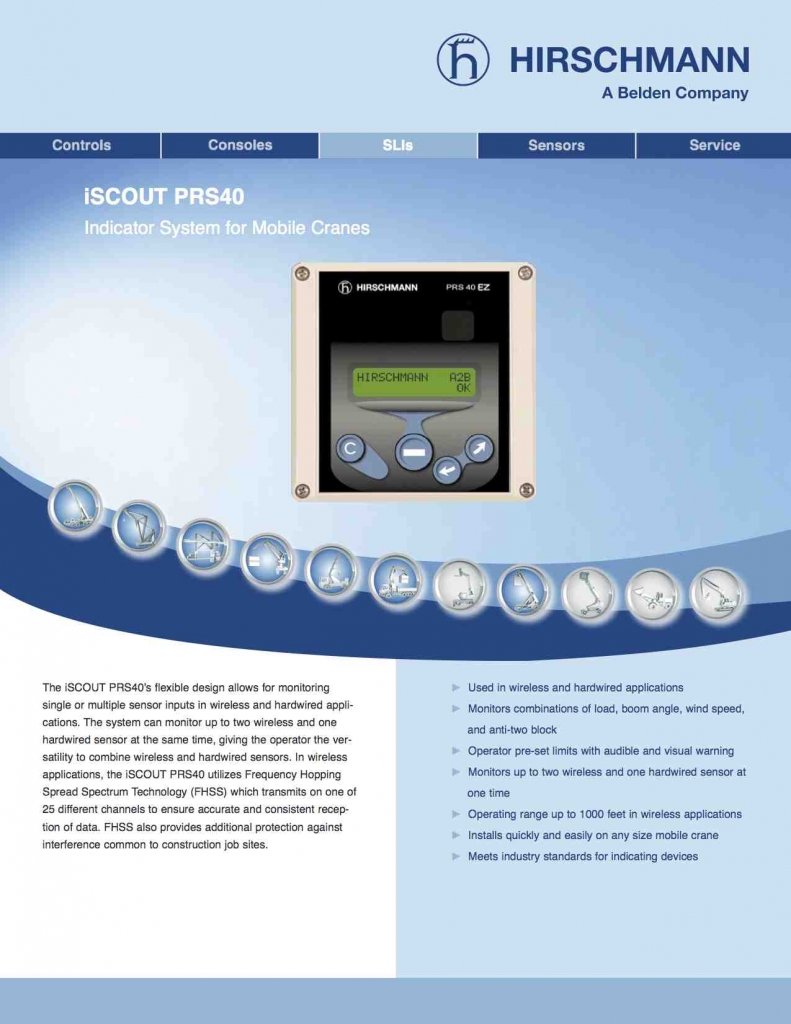

Hirschmann PRS 40 Information

PAT Hirschmann PRS 40 Sensors

Anti Two Block – The A2B switch is currently used industry-wide on thousands of mobile cranes.  All electronics are sealed and potted making for a rugged and durable switch.

Load – The load is measured to an accuracy of + 1% in both wireless and hardwired applications.  In wireless applications, a 15K or 45K load cell is used.  This load cell easily be installed on a headache ball or in the dead end of the boom.  In hardwired applications, the PAT Hirschmann PRS 40 EZ incorporates a linerider.

Angle – Hirschmann‘s angle sensors are compact and durable in design. The cranes boom angle is measured to an accuracy of +/- 1°.

Wind – Hirschmann‘s three cup wind speed sensor is designed for operation in standard or adverse environments. The quick pivot pedestal mount allows for quick and easy installation in both fixed or mobile applications.
